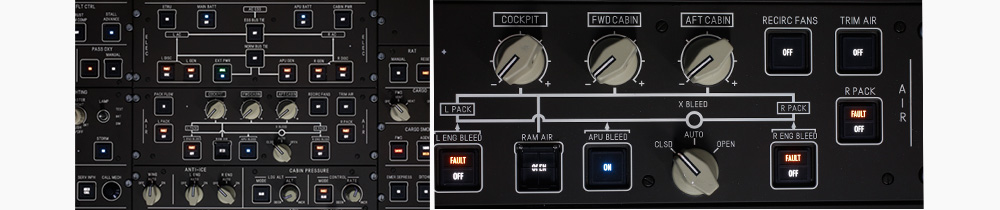

Illuminated panels is core part in control panel assemblies and are the lighting components for various aircraft equipment and systems. Their main function is to provide indicative lighting for each individual manipulation device. In addition, signal inputs and information display functions can also be integrated into illuminated panels according to function needs of equipment systems, therefore, they are one of the key components in aircraft display system.
-
LED light source,energy saving.
-
Unified lighting effects with no glaring.
-
Various color lighting effects in different areas.
-
Lighting and night vision systems are compatible.
-
Integrated function to meet different needs.
Our company is the first supplier nationwide to carry out the development and production on illuminated panels at professional level. Currently we process over 6000 illuminated panels products either under development or in production, with coverage in aviation, aerospace, ships, weapons as well as civilian fields. We provided illuminated display, dimming control for various types of system equipment. In China, we have over 80% market share for illuminated panel products used in aviation field, which covers all most all aircraft types in service and under development.
-
Military aviation
-
civil aviation
-
warship and ships
-
weapons and chariots
It is one of the most common product structure in illuminated panel products, with a depth around 6mm～11mm. Through build-in LED light sources, it can achieve the lighting requirements for symbols and marks in white, blue/white,red, yellow, green as well as night vision. It can also meet the lighting effects in double modes.

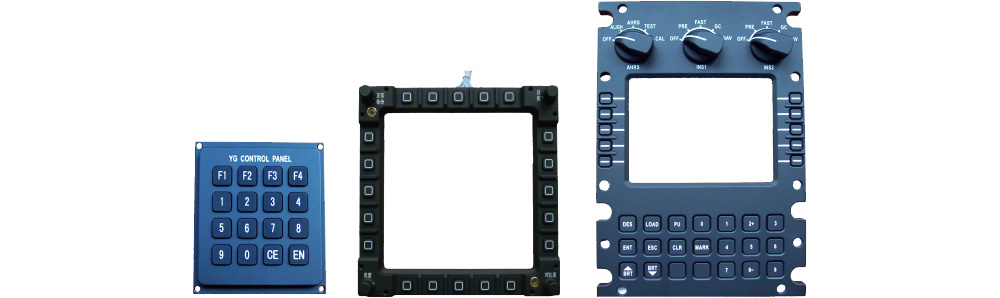

The structure of push-button illuminated panels is more complex than that of planar type. The depth is in general 10mm～15mm, and it has push button structure on its surface. Besides all the basic functions that planar illuminated panels have, it can provide comfortable operational interactive interfaces to other equipment system, based on system needs and realized by integrated button signal inputs and information display functions.
