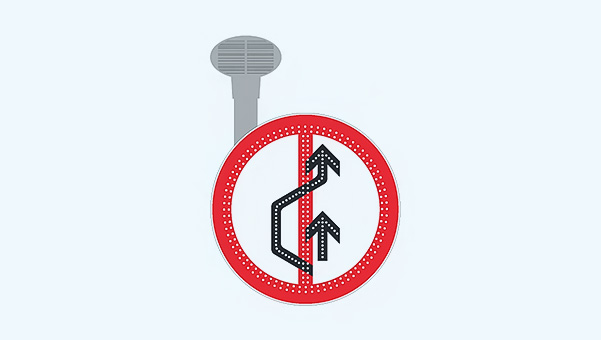

01.Product usage: To indicate that motor vehicles are not allowed to overtake the road between this sign to the front section of the road which lifting of the ban on signs of overtaking.
02.Application scope: This sign is set at the beginning of the prohibition of overtaking.
03.Product shape: 6mm thickness super slim shape.
| Solar panels | Items | Spec |
| Generating unit | Single crystal silicon solar panel | |
| Voltage | 6.8 V | |
| Electric current | 420mA | |
| Storage unit | Items | Spec |
| Storage unit | SANYO high capacity lithium battery | |
| Battery voltage | 3.7 V | |
| Battery capacity | 20800Ma | |
| Light emitting unit | Items | Spec |
| Light emitting unit | LED | |
| Light color | Optional | |
| LED quantity | Two hundred and ten | |
| Lighting time | Daytime 400Lux , Night 100 Lux (On demand) | |
| Light emitting unit | Items | Spec |
| Product Size | Diameter 800mm X 600mm X 6mm | |
| Shell material | PC、ABS | |
| Water proof | Level 6 | |
| Sight distance | Visible distance up to 300 meters | |
| Standby | Up to 100 hours | |
| Working temperature | -40℃～75℃ | |
| Weight | 14grams |

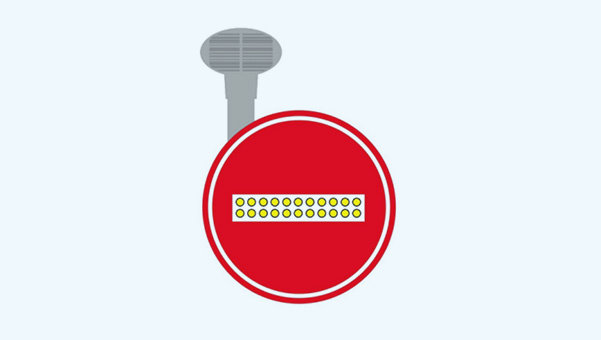

01.Product usage: To prohibit vehicles from entering a particular location or place.
02.Application scope: This sign is set in urban vehicle entry area.
03.Product shape: 6mm thickness super slim shape.
| Solar panels | Items | Spec |
| Generating unit | Single crystal silicon solar panel | |
| Voltage | 6.8 V | |
| Electric current | 420mA | |
| Storage unit | Items | Spec |
| Storage unit | SANYO high capacity lithium battery | |
| Battery voltage | 3.7 V | |
| Battery capacity | 20800Ma | |
| Light emitting unit | Items | Spec |
| Light emitting unit | LED | |
| Light color | Optional | |
| LED quantity | Twenty-two | |
| Lighting time | Daytime 400Lux , Night 100 Lux (On demand) | |
| Light emitting unit | Items | Spec |
| Product Size | Diameter 800mm X 600mm X 6mm | |
| Shell material | PC、ABS | |
| Water proof | Level 6 | |
| Sight distance | Visible distance up to 300 meters | |
| Standby | Up to 100 hours | |
| Working temperature | -40℃～75℃ | |
| Weight | 14grams |
